* Heavy Duty
* It works great for high roughage rations and bale processors.
*Works well with 600 lb plus calves.
* Move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling).
* Designed with a tapered toe kick to reduce aggression.
* Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron

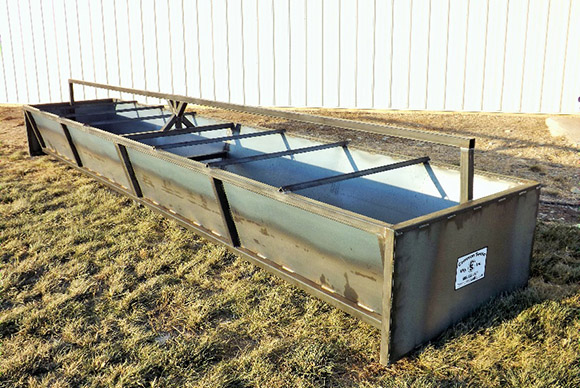

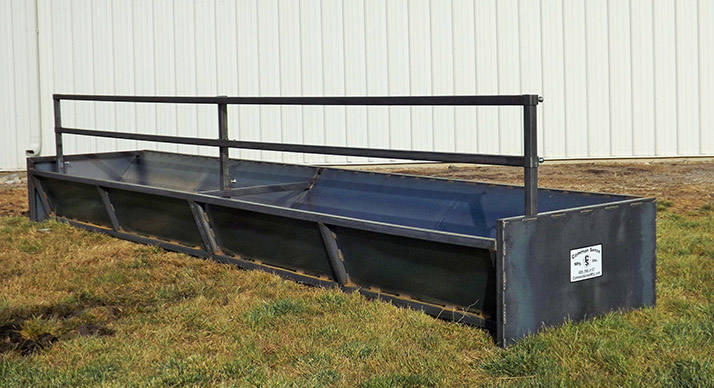

* Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock.
* Has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals.
* Due to the size of this bunk, animals should be above 750 lbs
* Workmanship Warranty is one year.
*Frame made of 2" x 2" 11 guage square tube steel;14 guage sheeting; Feed height is 18" tall

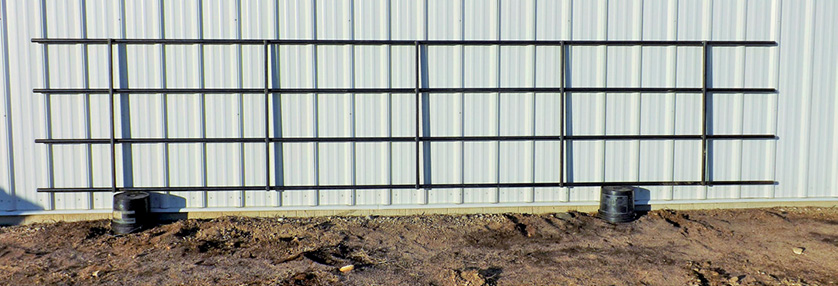

* Designed for quick and easy installation.

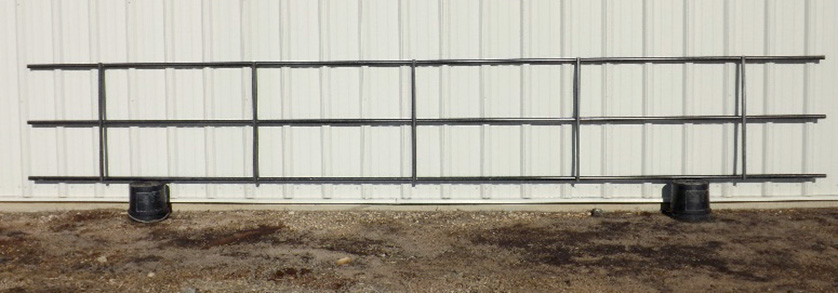

* 3-bar panel is great for a decorative-type fence.
* 3 splicer pipes, 3 clips, and six 3" construction screws included
* Warranty is one year
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed with efficiency and convenience in mind.
* Has a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Comes with 3 adjustable vertical and 2 vhorizontal bars, making them versatile for feeding both large and small animals.
* Warranty is one year
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Made for smaller animals.
* Our pan bunks are designed with efficiency and convenience in mind. They have a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
*The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Warranty is one year
* 10 gauge sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Heavy Duty
* Much larger capacity than most bunks
* Works great for high roughage rations and bale processors.
* Works will for cows, bulls and other large animals.
* Per SDSU recommendations, this bunk is rated for 18-20 head.
* Best to have animals be at least 750lbs
* Move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling).
* It is designed with a tapered toe kick to reduce aggression.
* Cross bars add strength and help prevent cows from being pushed into the bunk.
* Workmanship Warranty is one year.
* Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron
* Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock.
* Has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals.
* Due to the size of this bunk, animals should be above 750 lbs
* Workmanship Warranty is 1 year
* Larger capacity than most feedbunks on the market
* Frame made of 2" x 2" 11 gauge square tube; 14 gauge sheeting; Feed height is 18" tall

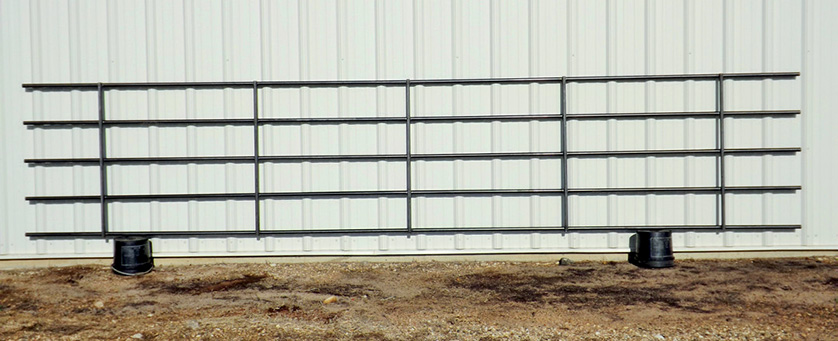

* Designed for quick and easy installation.
* Good fence for perimeter horse pens.
* Warranty is one year
* 4 splicer pipes, 4 clips, and eight 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel

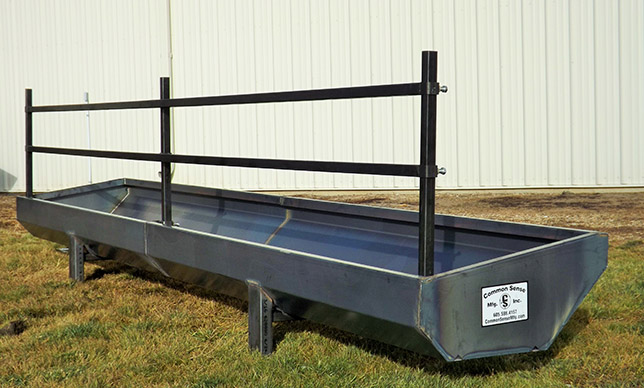

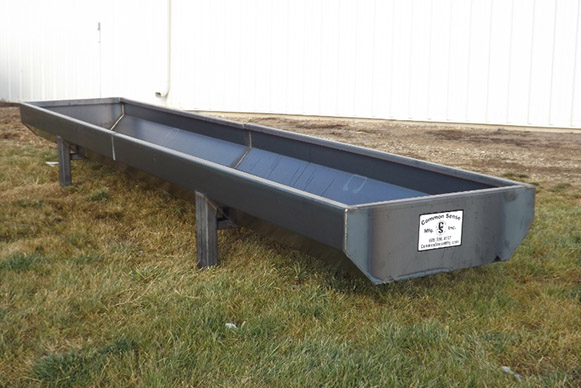

* Designed with efficiency and convenience in mind. It has a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* Legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* 3 adjustable vertical bars & 2 adjustable horizontal bars making them versatile for feeding both large and smaller animals
*Warranty is one year
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Made for larger animals. Calves should be at least 650lbs
* Our panbunks are designed with efficiency and convenience in mind with a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Warranty is one year.
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Designed for quick and easy installation.
*Warranty is one year.
* 5 splicer pipes, 5 clips, and ten 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed for quick and easy installation.
* Warranty is one year.
* 6 splicer pipes, 6 clips, and twelve 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel

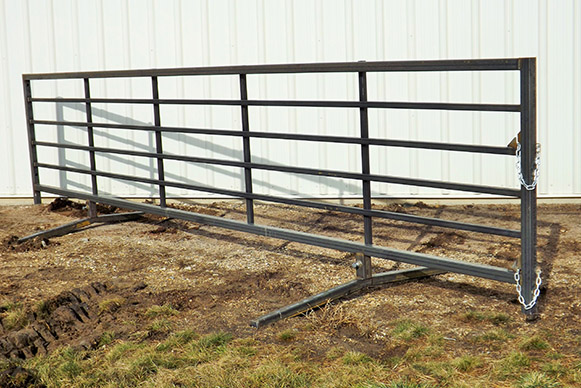

* This heavy duty free standing panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing.
* The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing.
* It has 2 movable 6’ legs to accommodate for corners and 2 gate latches and 2 chains on one end.
* Heavy duty panel is good for high-pressure points
* Warranty is one year.

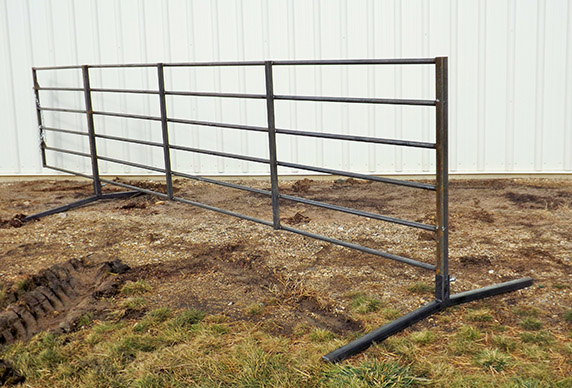

* This medium duty freestanding panel is made of 6 1-1”4” 14 gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing.
* Has 2 removable 6’ legs and two gate latches and chains on one end.
* Medium weight panel that is easy to move
* Warranty is one year
* 6 1-1/4" 14 ga. round horizontal bars
2" heavy square tubing uprights
Removable 6' legs

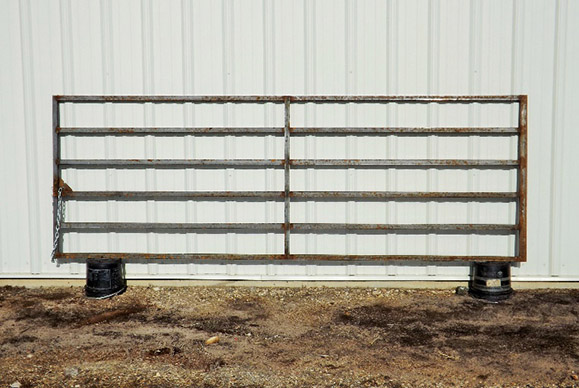

* 6 bars high with widths available in 8’, 10’ 12’, 14’, and 16’.
* Heavy 1” threaded hinges are included.
* Warranty is one year
* Can be easily attached to the free standing fencing
* 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges

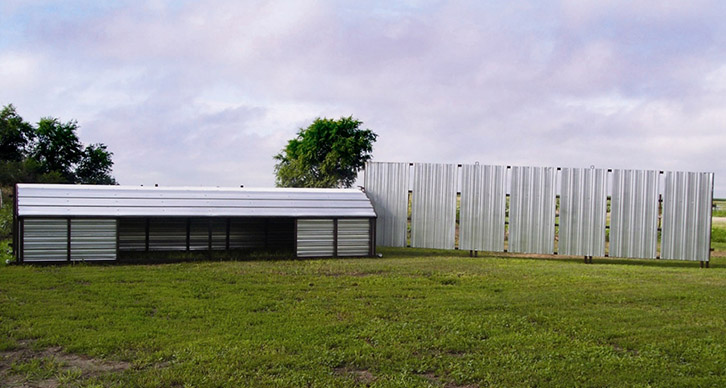

* This is not a freestanding windbreak.
* It is a recommended attachment to a Common Sense calf shelter on each or either side of the shelter in order to protect cattle against harsh winds and keep cows in an area where you want your calves to be.
* Can also be used on an existing fenceline by chaining it to your posts.
* Quick, easy, portable protection of livestock.
* Made in the USA
* Warranty is one year
* 2"x2" 14 gauge square tubing frame, 26 gauge galvanized tin

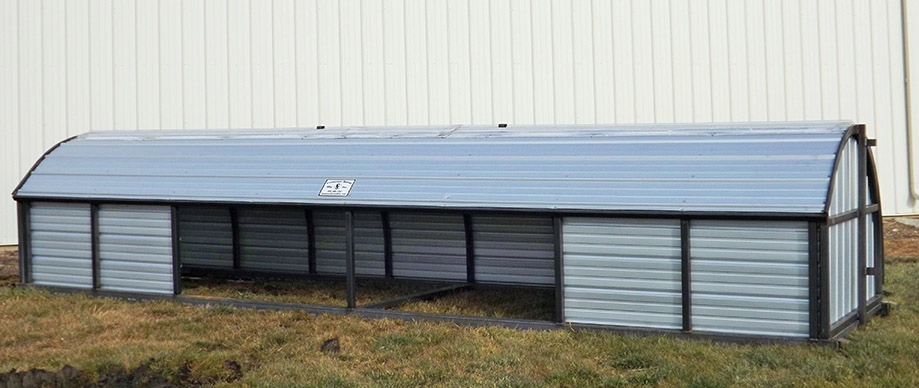

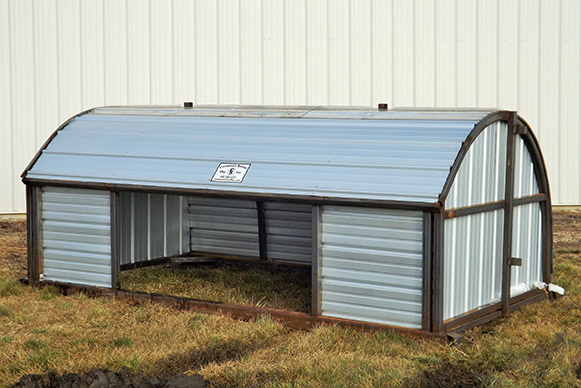

* Meant for about 30 calves.
* Curved roof design that makes it less likely to be tipped by the wind, a skylight to brighten the interior and make it more inviting for calves, and a door designed on the side to be inviting and keep calves closer to their mother.
* Common Sense has windbreaks and lifthooks available which are sold separately.
* Warranty is one year.
* 4" x 4" x 3/16" square tube steel frame
2' x 4' 14 gauge skids
2' x 2' 14 guage hoops
26 gauge galvanized tin covering
11’ wide x 30” tall front opening
* Meant to be for about 15 calves.
* Has a curved roof design that makes it less likely to be tipped by the wind, a skylight to brighten the interior and make it more inviting for calves, and a door designed on the side to be inviting and keep calves closer to their mother.
* Warranty is one year.
* Windbreaks and lift hooks available which are sold separately.
* 4" x 4" x 3/16" square tube steel frame
2' x 4' 14 gauge skids
2' x 2' 14 guage hoops
26 gauge galvanized tin covering
5’8” wide x 30” tall front opening

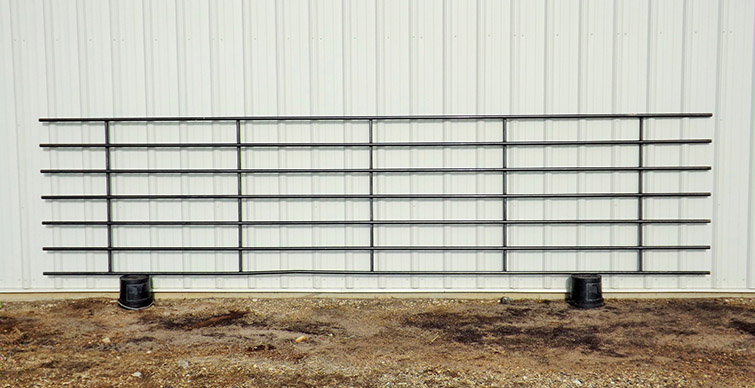

* Designed for quick and easy installation.
*Warranty is one year.
* 7 splicer pipes, 7 clips, and fourteen 3" construction screws included
* 1 1/4" 14 ga. round horizontal tubing
* Five 1" 11 gauge square tube uprights.per panel

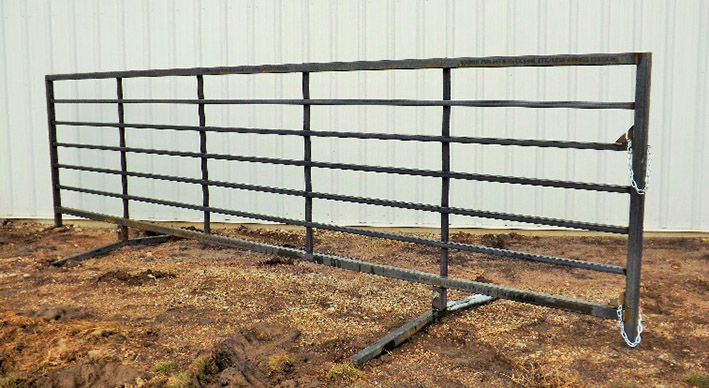

* This heavy duty free standing panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing.
* The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing.
* Has 2 movable 6’ legs and 2 gate latches and 2 chains on one end.
* Warranty is one year.
* Heavy duty panel is good for high-pressure points

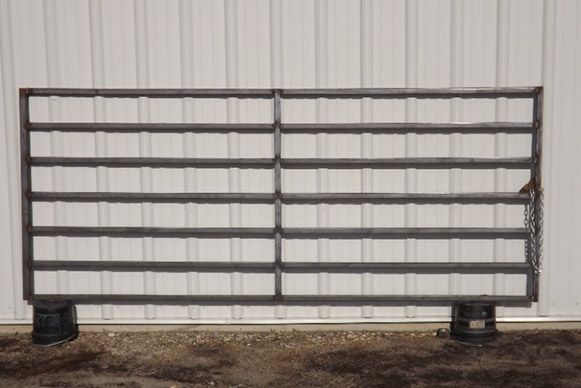

* This medium duty freestanding panel is made of 7 1-1”4” 14 gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing.
* It has 2 removable 6’ legs and two gate latches and chains on one end.
* Warranty is one year.
* Medium weight panel that is easy to move
* Heavy 1” threaded hinges are included.
* Warranty is one year.
* Many widths available as well as custom sizes.
* Can easily attach to free standing fencing.
* 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges

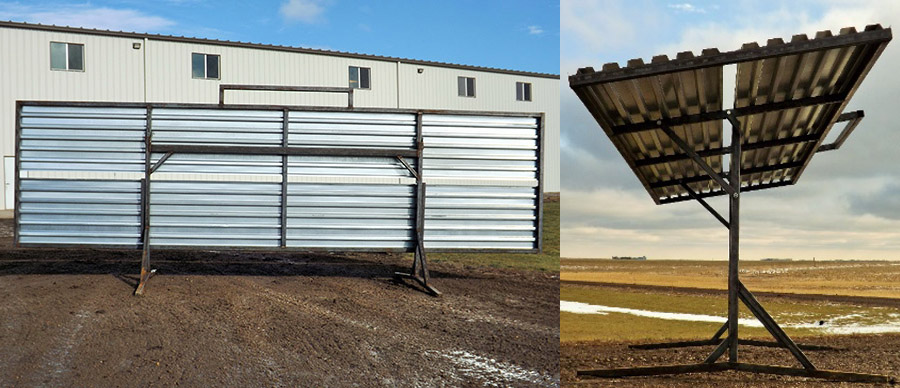

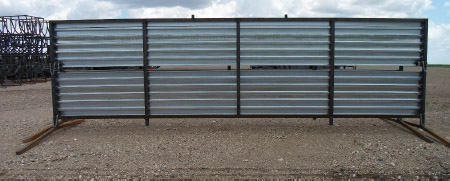

* Very similar to our portable wind break but has framework designed to be converted into a sun shade for summer use.
* Quick, east, portable protection of livestock
*Warranty is one year
*2-1/2" x 2-1/2" 11 gauge square tubing frame; Sheeted with 22 gauge galvanized super-steel
* Durable, portable, and will stand on its own.
* 2 chains and latches on each end to attach multiple windbreaks together.
* Legs can be moved in in order to create a 90° corner.
* Designed to attach to our calf shelter.
* 11' Removable Legs
* Warranty is one year
* Quick, easy, portable protection of livestock
* 2-1/2"x2-1/2" 11 gauge square tubing frame; sheeted with 22 guage galvanized super-steel
*Designed for fast hassle-free installation of any fencline.
*Made in USA
*Warranty is one year
*Heavy duty
*11 gauge 1-1/2" x 3" square tubing frame posts are 5' tall and made of 4"x4"x 3/16" square tubing 11 gauge 1-1/2" square tubing cross bars
* Portable and easy to move while also being sturdy
*Custom colors and lengths available
*Made in USA
*Warranty is one year
*2”x2” 11 gauge, 2”x2” 14 gauge, and 1-1/2” x 1-1/2” 16 ga. square tubing frame
Covered with ½” flat expanded metal
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.

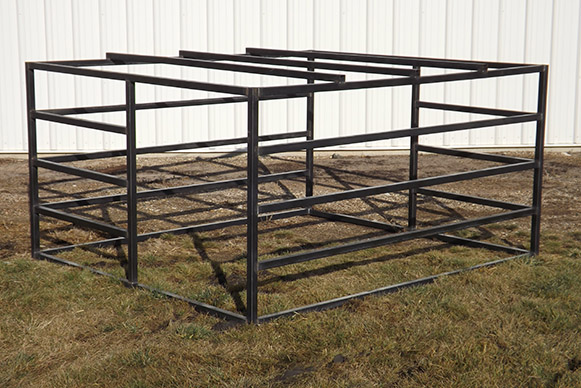

*Buller pen in designed to prevent bulls from riding each other and causing injury or death.
*Placed along a fenceline, a targeted bull will enter the pen for protection from other bulls.
*Warranty is one year
*2" x 2" 11 gauge square tube frame
*Staggered 4' walk through openings
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.

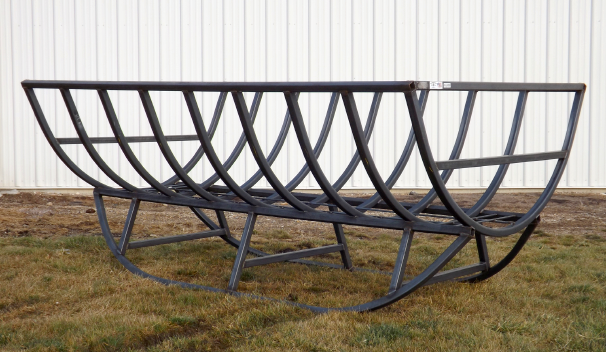

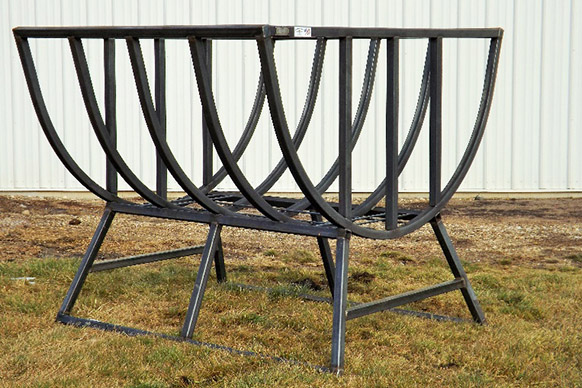

* The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale.
* Also available in a smaller size for a single bale.
* Curved skid increases portability
* Warranty is one year
* Frame made of 2" x 2" 11 guage square tube. Hoops consist of 2" x 2" 14 gauge square tube

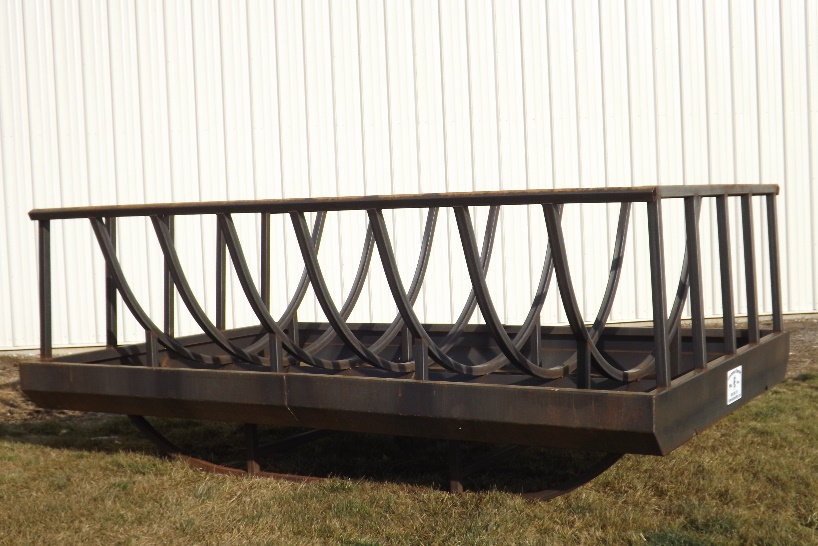

* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel

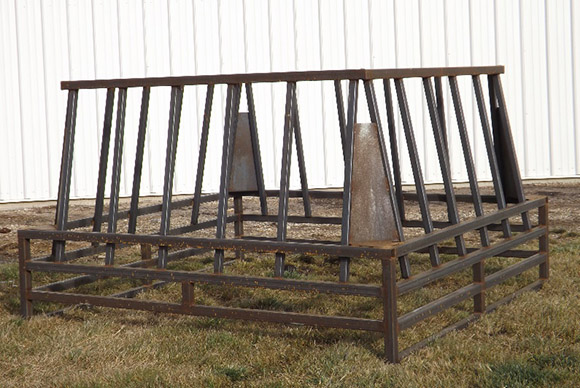

*Extremely heavy built feeder should be used for large animals.
* Feeder is designed to have less hay loss due to its tapered sides.
* Less hay loss due to its tapered sides
* Warranty is one year
* Frame made of 2" x 2" 11 guage square tube with 1 1/2" 11 gauge square neck bars
6' tall, 7 1/2' wide across top and 12' long
Net Weight: 1225 lbs

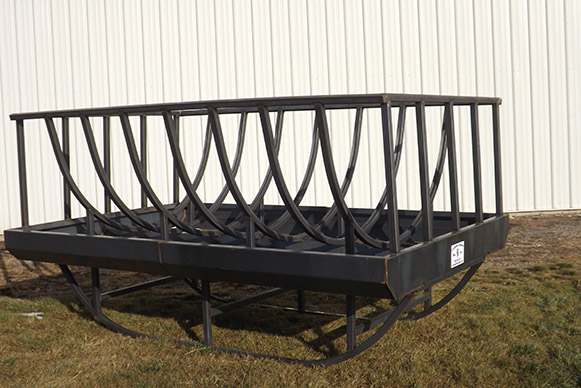

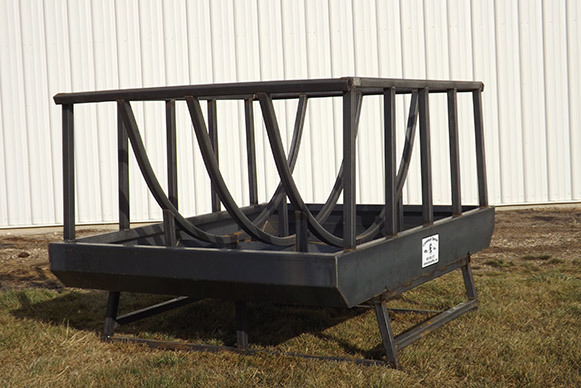

* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Taller to prevent horses from rubbing their mane.
* Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel.

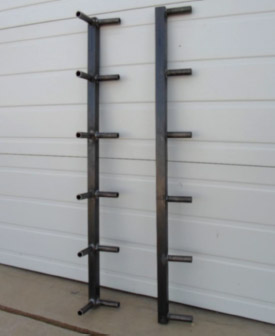

* Endcaps are designed to cover up the raw ends on continuous fence.
* 90° continuous end is meant to create a corner on the continuous fence.
* The regular continuous fence end finishes a raw edge on all sizes of continuous fence.
* Warranty is one year
* 1-1/2" x 1-1/2" 16 guage square tube upright
* 1" pipe stubs

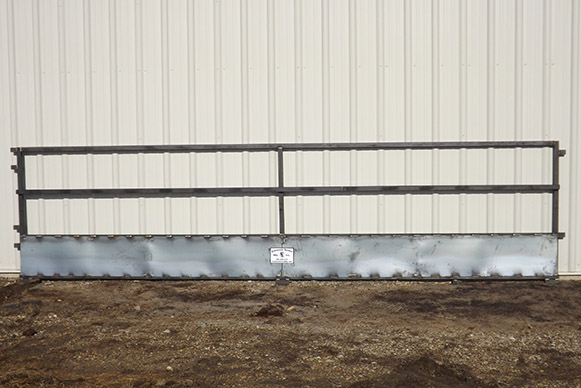

* Less expensive alternative to our fenceline feed bunks.
* Designed with bottom bar adjustable for different animal sizes.
* Available in 10’ or 20’ lengths.
* One inch pins are included.
* Workmanship Warranty is 1 year
* Frame made of 2” x 2” 11 gauge square tube
* Sheeting is 14 gauge sheet metal

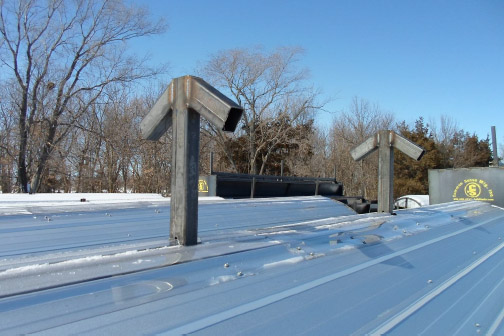

* These lifthooks bolt on top of the Common Sense calf shelter so that it can be lifted with a tractor bucket.
* No chains are required and even in the dead of winter the calf shelter is easy to move.
* Can be added to older shelters and are also designed to work on the portable windbreak.
* Made out of 3 1/2" x 2 1/2" x 3/16" tubing. Bolts on top of calf shelter.
* Sold in sets of two.
*Portable and easy to move while also being sturdy
*Custom colors and lengths are available
*Made in the USA
*Warranty is one year
*2” x 2” 11 gauge square tube and 1-1/2”x 2” 11 gauge angle iron frame

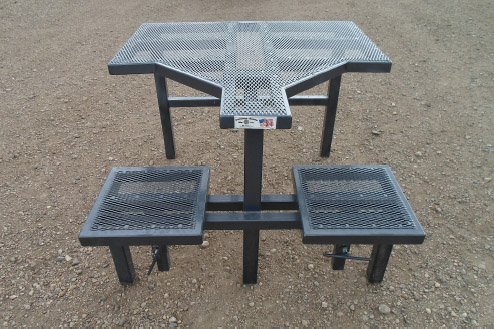

*Works well for both left or right eye dominant shooter
*Adjustable seats for all sizes of shooters
*Powder coated gun metal grey for a rust-free finish
*Made in the USA
*Warranty is one year
*2-1/2" x 2-1/2" -3/16" and 2" x 2" 11 gauge square tubing framing Top and seats covered with 1/2" flattened expanded metal powder coated gun metal grey.

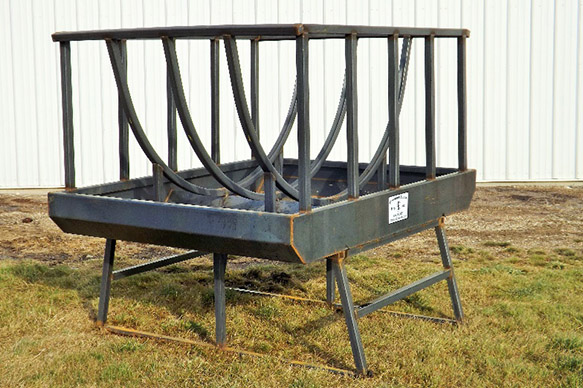

* The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale.
* Taller to prevent horses from rubbing their mane
* Warranty is one year
* Frame made of 2"x2" 11 gauge square tube
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel

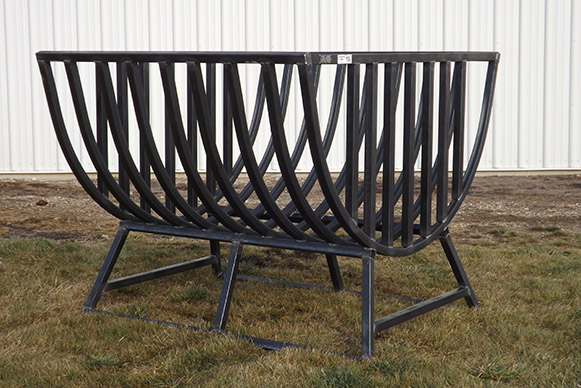

* Great curved design to accommodate large and small animals alike.
*Extra bars to make smaller, 6" opening to stop sheep and goats from getting into feeder.
*Also available in 12' long.
*Workmanship Warranty is one year.
*Frame made of 2" x 2" 11 gauge square tube
*Hoops consist of 2" x 2" 14 gauge square tube
* Extremely heavy built feeder should be used for large animals.
* Designed to have less hay loss due to its tapered sides.
* Less hay loss due to its tapered sides
*Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube with 1 1/2" 11 gauge square neck bars
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Taller to prevent horses from rubbing their mane.
*Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel.
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
*Made in the USA
*Warranty is 1 year
*1" x 1/8" strap; 1" 11 gauge square tubing
* Made in the USA
*Warranty is 1 year
* 1/2' rod hoops; 5/8" rod bent hoops

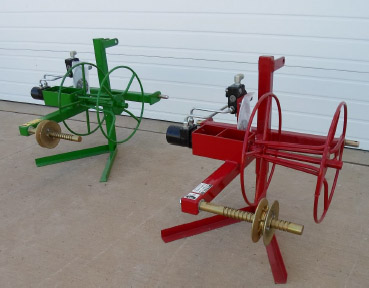

* Mounts on a 3 point hitch. Can be easily removed to attach to a skidsteer bucket or anything with hydraulics.
*Flow control valve with hydraulic clutch mechanism for added safety.
*Unique level wind assembly forms a uniform roll so that wire can easily be reused.
* 2 sealed bearing reduce side pressure on the orbital motor.
*Instructional video included
* Heavy Duty
* It works great for high roughage rations and bale processors.
*Works well with 600 lb plus calves.
* Move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling).
* Designed with a tapered toe kick to reduce aggression.
* Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron
* Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock.
* Has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals.
* Due to the size of this bunk, animals should be above 750 lbs
* Workmanship Warranty is one year.
*Frame made of 2" x 2" 11 guage square tube steel;14 guage sheeting; Feed height is 18" tall
* Designed for quick and easy installation.
* 3-bar panel is great for a decorative-type fence.
* 3 splicer pipes, 3 clips, and six 3" construction screws included
* Warranty is one year
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed with efficiency and convenience in mind.
* Has a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Comes with 3 adjustable vertical and 2 vhorizontal bars, making them versatile for feeding both large and small animals.
* Warranty is one year
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Made for smaller animals.
* Our pan bunks are designed with efficiency and convenience in mind. They have a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
*The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Warranty is one year
* 10 gauge sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Heavy Duty
* Much larger capacity than most bunks
* Works great for high roughage rations and bale processors.
* Works will for cows, bulls and other large animals.
* Per SDSU recommendations, this bunk is rated for 18-20 head.
* Best to have animals be at least 750lbs
* Move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling).
* It is designed with a tapered toe kick to reduce aggression.
* Cross bars add strength and help prevent cows from being pushed into the bunk.
* Workmanship Warranty is one year.
* Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron
* Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock.
* Has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals.
* Due to the size of this bunk, animals should be above 750 lbs
* Workmanship Warranty is 1 year
* Larger capacity than most feedbunks on the market
* Frame made of 2" x 2" 11 gauge square tube; 14 gauge sheeting; Feed height is 18" tall
* Designed for quick and easy installation.
* Good fence for perimeter horse pens.
* Warranty is one year
* 4 splicer pipes, 4 clips, and eight 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed with efficiency and convenience in mind. It has a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* Legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* 3 adjustable vertical bars & 2 adjustable horizontal bars making them versatile for feeding both large and smaller animals
*Warranty is one year
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Made for larger animals. Calves should be at least 650lbs
* Our panbunks are designed with efficiency and convenience in mind with a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Warranty is one year.
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Designed for quick and easy installation.
*Warranty is one year.
* 5 splicer pipes, 5 clips, and ten 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed for quick and easy installation.
* Warranty is one year.
* 6 splicer pipes, 6 clips, and twelve 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* This heavy duty free standing panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing.
* The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing.
* It has 2 movable 6’ legs to accommodate for corners and 2 gate latches and 2 chains on one end.
* Heavy duty panel is good for high-pressure points
* Warranty is one year.
* This medium duty freestanding panel is made of 6 1-1”4” 14 gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing.
* Has 2 removable 6’ legs and two gate latches and chains on one end.
* Medium weight panel that is easy to move
* Warranty is one year
* 6 1-1/4" 14 ga. round horizontal bars
2" heavy square tubing uprights
Removable 6' legs
* 6 bars high with widths available in 8’, 10’ 12’, 14’, and 16’.
* Heavy 1” threaded hinges are included.
* Warranty is one year
* Can be easily attached to the free standing fencing
* 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges
* This is not a freestanding windbreak.
* It is a recommended attachment to a Common Sense calf shelter on each or either side of the shelter in order to protect cattle against harsh winds and keep cows in an area where you want your calves to be.
* Can also be used on an existing fenceline by chaining it to your posts.
* Quick, easy, portable protection of livestock.
* Made in the USA
* Warranty is one year
* 2"x2" 14 gauge square tubing frame, 26 gauge galvanized tin
* Meant for about 30 calves.
* Curved roof design that makes it less likely to be tipped by the wind, a skylight to brighten the interior and make it more inviting for calves, and a door designed on the side to be inviting and keep calves closer to their mother.
* Common Sense has windbreaks and lifthooks available which are sold separately.
* Warranty is one year.
* 4" x 4" x 3/16" square tube steel frame
2' x 4' 14 gauge skids
2' x 2' 14 guage hoops
26 gauge galvanized tin covering
11’ wide x 30” tall front opening
* Meant to be for about 15 calves.
* Has a curved roof design that makes it less likely to be tipped by the wind, a skylight to brighten the interior and make it more inviting for calves, and a door designed on the side to be inviting and keep calves closer to their mother.
* Warranty is one year.
* Windbreaks and lift hooks available which are sold separately.
* 4" x 4" x 3/16" square tube steel frame
2' x 4' 14 gauge skids
2' x 2' 14 guage hoops
26 gauge galvanized tin covering
5’8” wide x 30” tall front opening
* Designed for quick and easy installation.
*Warranty is one year.
* 7 splicer pipes, 7 clips, and fourteen 3" construction screws included
* 1 1/4" 14 ga. round horizontal tubing
* Five 1" 11 gauge square tube uprights.per panel
* This heavy duty free standing panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing.
* The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing.
* Has 2 movable 6’ legs and 2 gate latches and 2 chains on one end.
* Warranty is one year.
* Heavy duty panel is good for high-pressure points
* This medium duty freestanding panel is made of 7 1-1”4” 14 gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing.
* It has 2 removable 6’ legs and two gate latches and chains on one end.
* Warranty is one year.
* Medium weight panel that is easy to move
* Heavy 1” threaded hinges are included.
* Warranty is one year.
* Many widths available as well as custom sizes.
* Can easily attach to free standing fencing.
* 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges
* Very similar to our portable wind break but has framework designed to be converted into a sun shade for summer use.
* Quick, east, portable protection of livestock
*Warranty is one year
*2-1/2" x 2-1/2" 11 gauge square tubing frame; Sheeted with 22 gauge galvanized super-steel
* Durable, portable, and will stand on its own.
* 2 chains and latches on each end to attach multiple windbreaks together.
* Legs can be moved in in order to create a 90° corner.
* Designed to attach to our calf shelter.
* 11' Removable Legs
* Warranty is one year
* Quick, easy, portable protection of livestock
* 2-1/2"x2-1/2" 11 gauge square tubing frame; sheeted with 22 guage galvanized super-steel
*Designed for fast hassle-free installation of any fencline.
*Made in USA
*Warranty is one year
*Heavy duty
*11 gauge 1-1/2" x 3" square tubing frame posts are 5' tall and made of 4"x4"x 3/16" square tubing 11 gauge 1-1/2" square tubing cross bars
* Portable and easy to move while also being sturdy
*Custom colors and lengths available
*Made in USA
*Warranty is one year
*2”x2” 11 gauge, 2”x2” 14 gauge, and 1-1/2” x 1-1/2” 16 ga. square tubing frame
Covered with ½” flat expanded metal
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
*Buller pen in designed to prevent bulls from riding each other and causing injury or death.
*Placed along a fenceline, a targeted bull will enter the pen for protection from other bulls.
*Warranty is one year
*2" x 2" 11 gauge square tube frame
*Staggered 4' walk through openings
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
* The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale.
* Also available in a smaller size for a single bale.
* Curved skid increases portability
* Warranty is one year
* Frame made of 2" x 2" 11 guage square tube. Hoops consist of 2" x 2" 14 gauge square tube
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel
*Extremely heavy built feeder should be used for large animals.
* Feeder is designed to have less hay loss due to its tapered sides.
* Less hay loss due to its tapered sides
* Warranty is one year
* Frame made of 2" x 2" 11 guage square tube with 1 1/2" 11 gauge square neck bars
6' tall, 7 1/2' wide across top and 12' long
Net Weight: 1225 lbs
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Taller to prevent horses from rubbing their mane.
* Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel.
* Endcaps are designed to cover up the raw ends on continuous fence.
* 90° continuous end is meant to create a corner on the continuous fence.
* The regular continuous fence end finishes a raw edge on all sizes of continuous fence.
* Warranty is one year
* 1-1/2" x 1-1/2" 16 guage square tube upright
* 1" pipe stubs
* Less expensive alternative to our fenceline feed bunks.
* Designed with bottom bar adjustable for different animal sizes.
* Available in 10’ or 20’ lengths.
* One inch pins are included.
* Workmanship Warranty is 1 year
* Frame made of 2” x 2” 11 gauge square tube
* Sheeting is 14 gauge sheet metal
* These lifthooks bolt on top of the Common Sense calf shelter so that it can be lifted with a tractor bucket.
* No chains are required and even in the dead of winter the calf shelter is easy to move.
* Can be added to older shelters and are also designed to work on the portable windbreak.
* Made out of 3 1/2" x 2 1/2" x 3/16" tubing. Bolts on top of calf shelter.
* Sold in sets of two.
*Portable and easy to move while also being sturdy
*Custom colors and lengths are available
*Made in the USA
*Warranty is one year
*2” x 2” 11 gauge square tube and 1-1/2”x 2” 11 gauge angle iron frame
*Works well for both left or right eye dominant shooter
*Adjustable seats for all sizes of shooters
*Powder coated gun metal grey for a rust-free finish
*Made in the USA
*Warranty is one year
*2-1/2" x 2-1/2" -3/16" and 2" x 2" 11 gauge square tubing framing Top and seats covered with 1/2" flattened expanded metal powder coated gun metal grey.
* The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale.
* Taller to prevent horses from rubbing their mane
* Warranty is one year
* Frame made of 2"x2" 11 gauge square tube
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel
* Great curved design to accommodate large and small animals alike.
*Extra bars to make smaller, 6" opening to stop sheep and goats from getting into feeder.
*Also available in 12' long.
*Workmanship Warranty is one year.
*Frame made of 2" x 2" 11 gauge square tube
*Hoops consist of 2" x 2" 14 gauge square tube
* Extremely heavy built feeder should be used for large animals.
* Designed to have less hay loss due to its tapered sides.
* Less hay loss due to its tapered sides
*Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube with 1 1/2" 11 gauge square neck bars
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Taller to prevent horses from rubbing their mane.
*Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel.
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
*Made in the USA
*Warranty is 1 year
*1" x 1/8" strap; 1" 11 gauge square tubing
* Made in the USA
*Warranty is 1 year

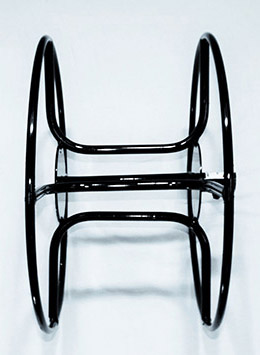

* 1/2' rod hoops; 5/8" rod bent hoops
* Mounts on a 3 point hitch. Can be easily removed to attach to a skidsteer bucket or anything with hydraulics.

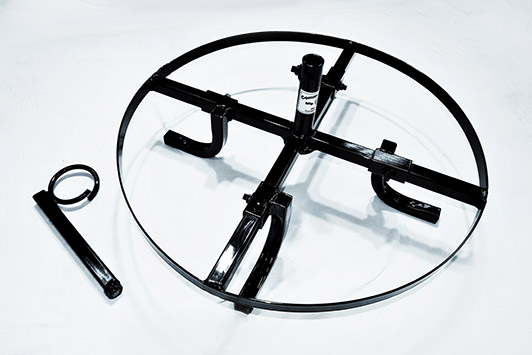

*Flow control valve with hydraulic clutch mechanism for added safety.
*Unique level wind assembly forms a uniform roll so that wire can easily be reused.
* 2 sealed bearing reduce side pressure on the orbital motor.
*Instructional video included
* Heavy Duty
* It works great for high roughage rations and bale processors.
*Works well with 600 lb plus calves.
* Move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling).
* Designed with a tapered toe kick to reduce aggression.
* Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron
* Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock.
* Has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals.
* Due to the size of this bunk, animals should be above 750 lbs
* Workmanship Warranty is one year.
*Frame made of 2" x 2" 11 guage square tube steel;14 guage sheeting; Feed height is 18" tall
* Designed for quick and easy installation.
* 3-bar panel is great for a decorative-type fence.
* 3 splicer pipes, 3 clips, and six 3" construction screws included
* Warranty is one year
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed with efficiency and convenience in mind.
* Has a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Comes with 3 adjustable vertical and 2 vhorizontal bars, making them versatile for feeding both large and small animals.
* Warranty is one year
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Made for smaller animals.
* Our pan bunks are designed with efficiency and convenience in mind. They have a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
*The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Warranty is one year
* 10 gauge sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Heavy Duty
* Much larger capacity than most bunks
* Works great for high roughage rations and bale processors.
* Works will for cows, bulls and other large animals.
* Per SDSU recommendations, this bunk is rated for 18-20 head.
* Best to have animals be at least 750lbs
* Move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling).
* It is designed with a tapered toe kick to reduce aggression.
* Cross bars add strength and help prevent cows from being pushed into the bunk.
* Workmanship Warranty is one year.
* Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron
* Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock.
* Has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals.
* Due to the size of this bunk, animals should be above 750 lbs
* Workmanship Warranty is 1 year
* Larger capacity than most feedbunks on the market
* Frame made of 2" x 2" 11 gauge square tube; 14 gauge sheeting; Feed height is 18" tall
* Designed for quick and easy installation.
* Good fence for perimeter horse pens.
* Warranty is one year
* 4 splicer pipes, 4 clips, and eight 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed with efficiency and convenience in mind. It has a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* Legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* 3 adjustable vertical bars & 2 adjustable horizontal bars making them versatile for feeding both large and smaller animals
*Warranty is one year
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Made for larger animals. Calves should be at least 650lbs
* Our panbunks are designed with efficiency and convenience in mind with a 45 degree taper and lip formed inside the pan bunk to eliminate waste.
* The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.
* Warranty is one year.
* 10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom
* Designed for quick and easy installation.
*Warranty is one year.
* 5 splicer pipes, 5 clips, and ten 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* Designed for quick and easy installation.
* Warranty is one year.
* 6 splicer pipes, 6 clips, and twelve 3" construction screws included
* 1 1/4" 14 gauge round horizontal tubing
* Five 1" 11 gauge square tube uprights per panel
* This heavy duty free standing panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing.
* The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing.
* It has 2 movable 6’ legs to accommodate for corners and 2 gate latches and 2 chains on one end.
* Heavy duty panel is good for high-pressure points
* Warranty is one year.
* This medium duty freestanding panel is made of 6 1-1”4” 14 gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing.
* Has 2 removable 6’ legs and two gate latches and chains on one end.
* Medium weight panel that is easy to move
* Warranty is one year
* 6 1-1/4" 14 ga. round horizontal bars
2" heavy square tubing uprights
Removable 6' legs
* 6 bars high with widths available in 8’, 10’ 12’, 14’, and 16’.
* Heavy 1” threaded hinges are included.
* Warranty is one year
* Can be easily attached to the free standing fencing
* 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges
* This is not a freestanding windbreak.
* It is a recommended attachment to a Common Sense calf shelter on each or either side of the shelter in order to protect cattle against harsh winds and keep cows in an area where you want your calves to be.
* Can also be used on an existing fenceline by chaining it to your posts.
* Quick, easy, portable protection of livestock.
* Made in the USA
* Warranty is one year
* 2"x2" 14 gauge square tubing frame, 26 gauge galvanized tin
* Meant for about 30 calves.
* Curved roof design that makes it less likely to be tipped by the wind, a skylight to brighten the interior and make it more inviting for calves, and a door designed on the side to be inviting and keep calves closer to their mother.
* Common Sense has windbreaks and lifthooks available which are sold separately.
* Warranty is one year.
* 4" x 4" x 3/16" square tube steel frame
2' x 4' 14 gauge skids
2' x 2' 14 guage hoops
26 gauge galvanized tin covering
11’ wide x 30” tall front opening
* Meant to be for about 15 calves.
* Has a curved roof design that makes it less likely to be tipped by the wind, a skylight to brighten the interior and make it more inviting for calves, and a door designed on the side to be inviting and keep calves closer to their mother.
* Warranty is one year.
* Windbreaks and lift hooks available which are sold separately.
* 4" x 4" x 3/16" square tube steel frame
2' x 4' 14 gauge skids
2' x 2' 14 guage hoops
26 gauge galvanized tin covering
5’8” wide x 30” tall front opening
* Designed for quick and easy installation.
*Warranty is one year.
* 7 splicer pipes, 7 clips, and fourteen 3" construction screws included
* 1 1/4" 14 ga. round horizontal tubing
* Five 1" 11 gauge square tube uprights.per panel
* This heavy duty free standing panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing.
* The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing.
* Has 2 movable 6’ legs and 2 gate latches and 2 chains on one end.
* Warranty is one year.
* Heavy duty panel is good for high-pressure points
* This medium duty freestanding panel is made of 7 1-1”4” 14 gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing.
* It has 2 removable 6’ legs and two gate latches and chains on one end.
* Warranty is one year.
* Medium weight panel that is easy to move
* Heavy 1” threaded hinges are included.
* Warranty is one year.
* Many widths available as well as custom sizes.
* Can easily attach to free standing fencing.
* 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges
* Very similar to our portable wind break but has framework designed to be converted into a sun shade for summer use.
* Quick, east, portable protection of livestock
*Warranty is one year
*2-1/2" x 2-1/2" 11 gauge square tubing frame; Sheeted with 22 gauge galvanized super-steel
* Durable, portable, and will stand on its own.
* 2 chains and latches on each end to attach multiple windbreaks together.
* Legs can be moved in in order to create a 90° corner.
* Designed to attach to our calf shelter.
* 11' Removable Legs
* Warranty is one year
* Quick, easy, portable protection of livestock
* 2-1/2"x2-1/2" 11 gauge square tubing frame; sheeted with 22 guage galvanized super-steel
*Designed for fast hassle-free installation of any fencline.
*Made in USA
*Warranty is one year
*Heavy duty
*11 gauge 1-1/2" x 3" square tubing frame posts are 5' tall and made of 4"x4"x 3/16" square tubing 11 gauge 1-1/2" square tubing cross bars
* Portable and easy to move while also being sturdy
*Custom colors and lengths available
*Made in USA
*Warranty is one year
*2”x2” 11 gauge, 2”x2” 14 gauge, and 1-1/2” x 1-1/2” 16 ga. square tubing frame
Covered with ½” flat expanded metal
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
*Buller pen in designed to prevent bulls from riding each other and causing injury or death.
*Placed along a fenceline, a targeted bull will enter the pen for protection from other bulls.
*Warranty is one year
*2" x 2" 11 gauge square tube frame
*Staggered 4' walk through openings
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
* The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale.
* Also available in a smaller size for a single bale.
* Curved skid increases portability
* Warranty is one year
* Frame made of 2" x 2" 11 guage square tube. Hoops consist of 2" x 2" 14 gauge square tube
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel
*Extremely heavy built feeder should be used for large animals.
* Feeder is designed to have less hay loss due to its tapered sides.
* Less hay loss due to its tapered sides
* Warranty is one year
* Frame made of 2" x 2" 11 guage square tube with 1 1/2" 11 gauge square neck bars
6' tall, 7 1/2' wide across top and 12' long
Net Weight: 1225 lbs
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Taller to prevent horses from rubbing their mane.
* Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel.
* Endcaps are designed to cover up the raw ends on continuous fence.
* 90° continuous end is meant to create a corner on the continuous fence.
* The regular continuous fence end finishes a raw edge on all sizes of continuous fence.
* Warranty is one year
* 1-1/2" x 1-1/2" 16 guage square tube upright
* 1" pipe stubs
* Less expensive alternative to our fenceline feed bunks.
* Designed with bottom bar adjustable for different animal sizes.
* Available in 10’ or 20’ lengths.
* One inch pins are included.
* Workmanship Warranty is 1 year
* Frame made of 2” x 2” 11 gauge square tube
* Sheeting is 14 gauge sheet metal
* These lifthooks bolt on top of the Common Sense calf shelter so that it can be lifted with a tractor bucket.
* No chains are required and even in the dead of winter the calf shelter is easy to move.
* Can be added to older shelters and are also designed to work on the portable windbreak.
* Made out of 3 1/2" x 2 1/2" x 3/16" tubing. Bolts on top of calf shelter.
* Sold in sets of two.
*Portable and easy to move while also being sturdy
*Custom colors and lengths are available
*Made in the USA
*Warranty is one year
*2” x 2” 11 gauge square tube and 1-1/2”x 2” 11 gauge angle iron frame
*Works well for both left or right eye dominant shooter
*Adjustable seats for all sizes of shooters
*Powder coated gun metal grey for a rust-free finish
*Made in the USA
*Warranty is one year
*2-1/2" x 2-1/2" -3/16" and 2" x 2" 11 gauge square tubing framing Top and seats covered with 1/2" flattened expanded metal powder coated gun metal grey.
* The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale.
* Taller to prevent horses from rubbing their mane
* Warranty is one year
* Frame made of 2"x2" 11 gauge square tube
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel
* Great curved design to accommodate large and small animals alike.
*Extra bars to make smaller, 6" opening to stop sheep and goats from getting into feeder.
*Also available in 12' long.
*Workmanship Warranty is one year.
*Frame made of 2" x 2" 11 gauge square tube
*Hoops consist of 2" x 2" 14 gauge square tube
* Extremely heavy built feeder should be used for large animals.
* Designed to have less hay loss due to its tapered sides.
* Less hay loss due to its tapered sides
*Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube with 1 1/2" 11 gauge square neck bars
* Has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.
* Taller to prevent horses from rubbing their mane.
*Workmanship Warranty is one year
* Frame made of 2" x 2" 11 gauge square tube, Hoops consist of 2" x 2" 14 gauge square tube, Pan is made of 10 gauge sheet steel.
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
Contact Wayne at (701) 327-8157 or (701) 471-8799 for more information.
*Made in the USA
*Warranty is 1 year
*1" x 1/8" strap; 1" 11 gauge square tubing
* Made in the USA
*Warranty is 1 year
* 1/2' rod hoops; 5/8" rod bent hoops
* Mounts on a 3 point hitch. Can be easily removed to attach to a skidsteer bucket or anything with hydraulics.
*Flow control valve with hydraulic clutch mechanism for added safety.
*Unique level wind assembly forms a uniform roll so that wire can easily be reused.
* 2 sealed bearing reduce side pressure on the orbital motor.
*Instructional video included
